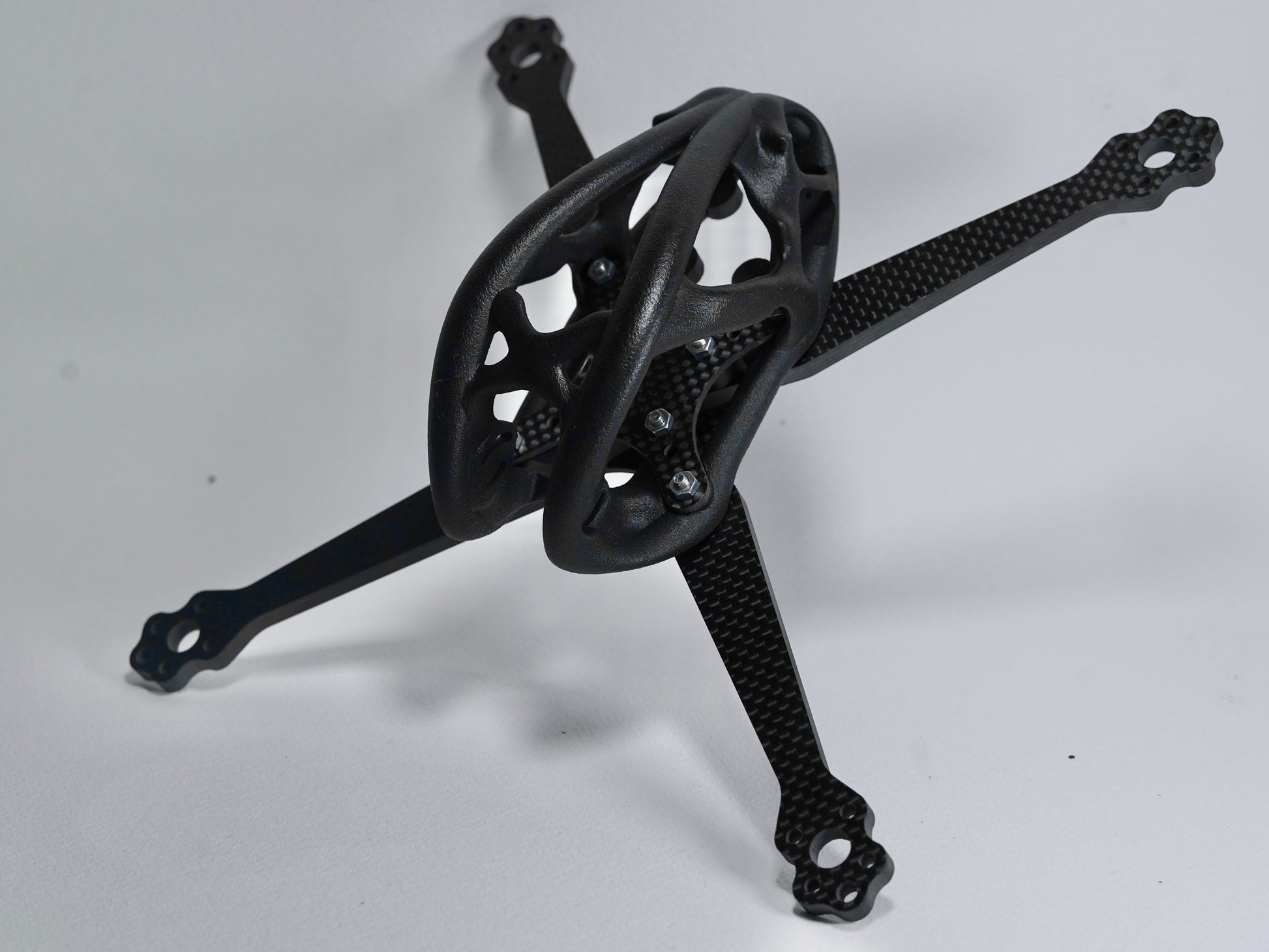

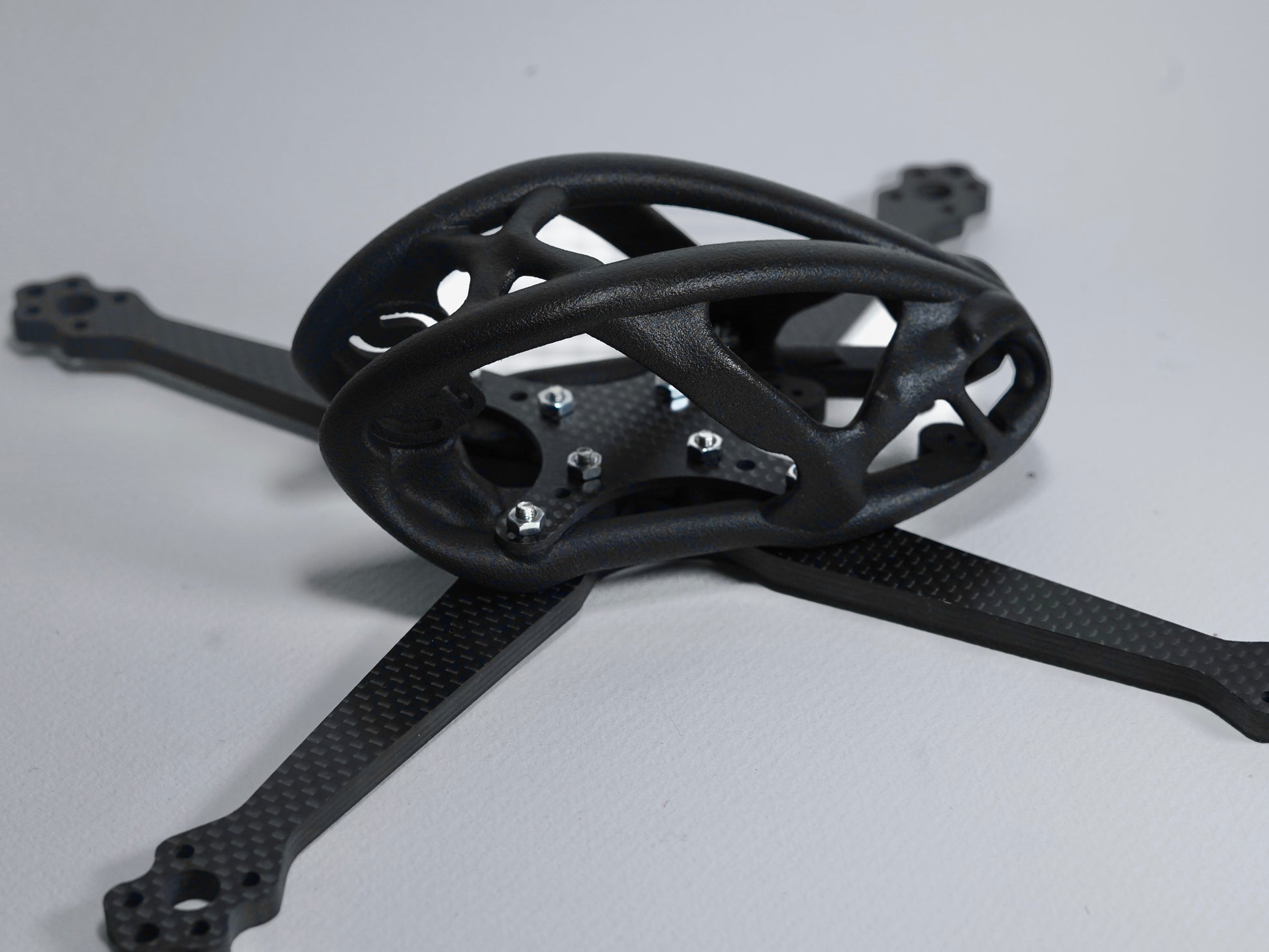

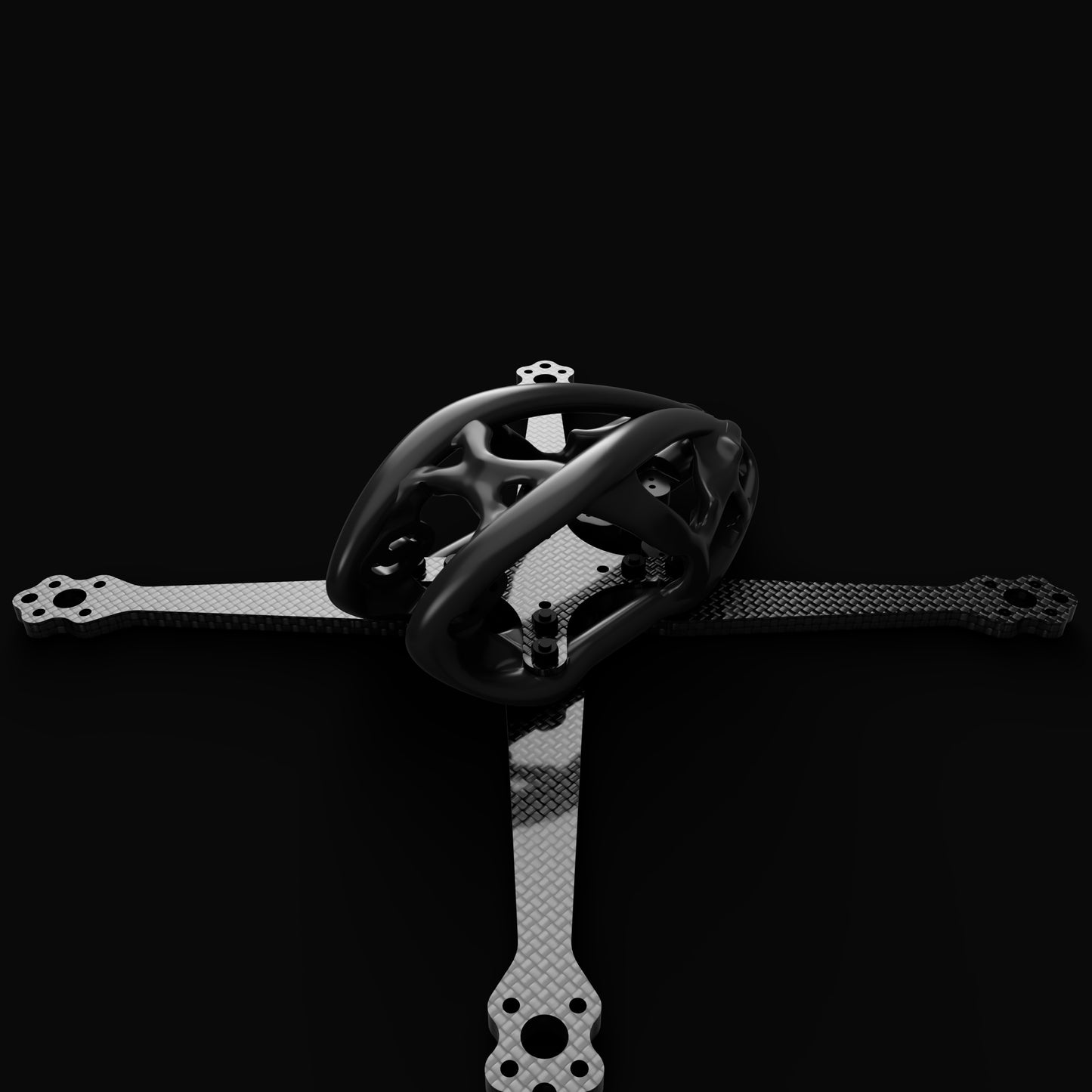

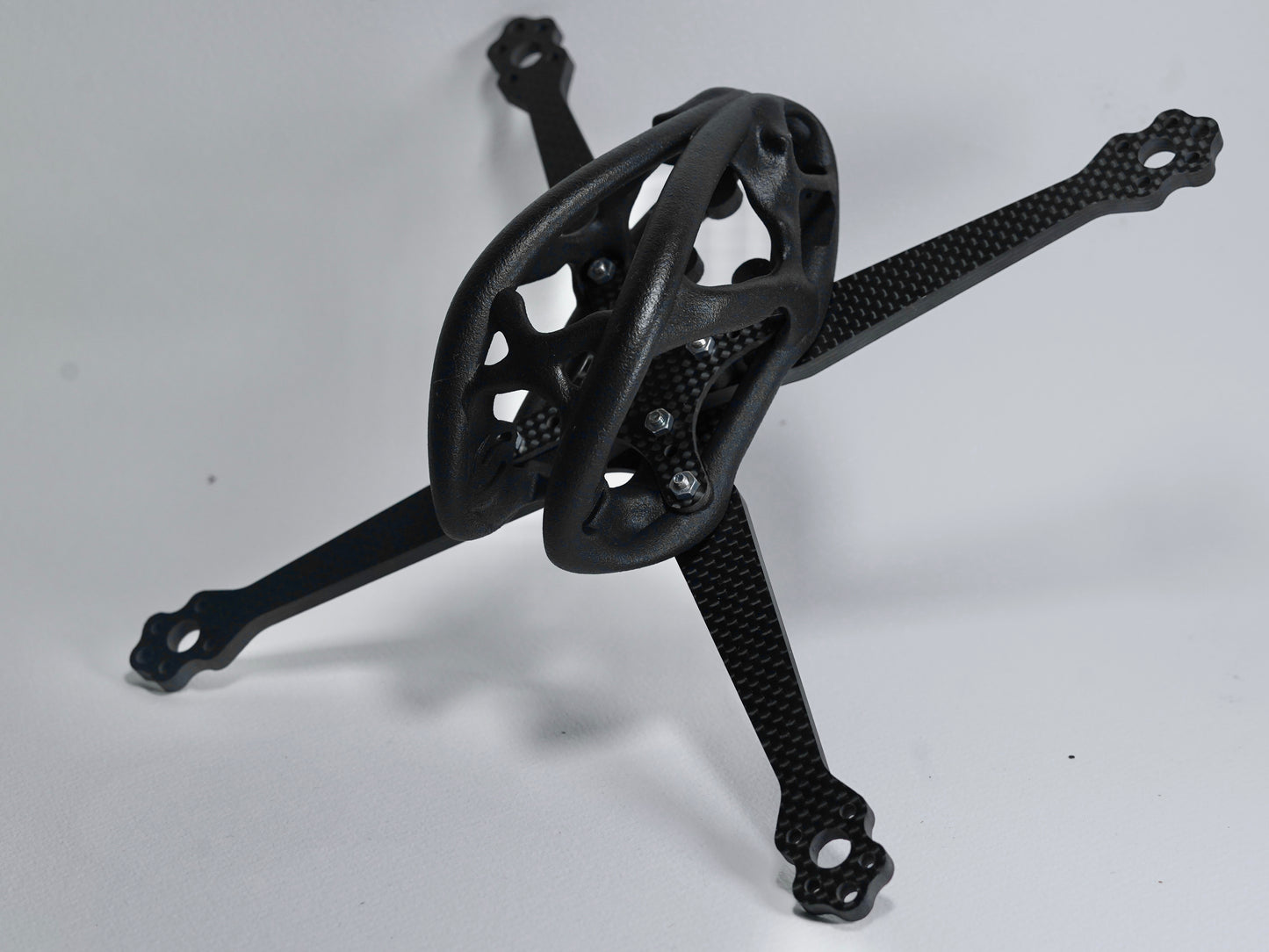

Introducing our innovative drone frame, meticulously designed to combine the best of both worlds: the robustness of Nylon PA 11/12 and the lightweight strength of carbon fiber. This unique blend of materials ensures exceptional durability, stability, and performance, making it the perfect choice for drone enthusiasts seeking top-tier quality.
Key Features:

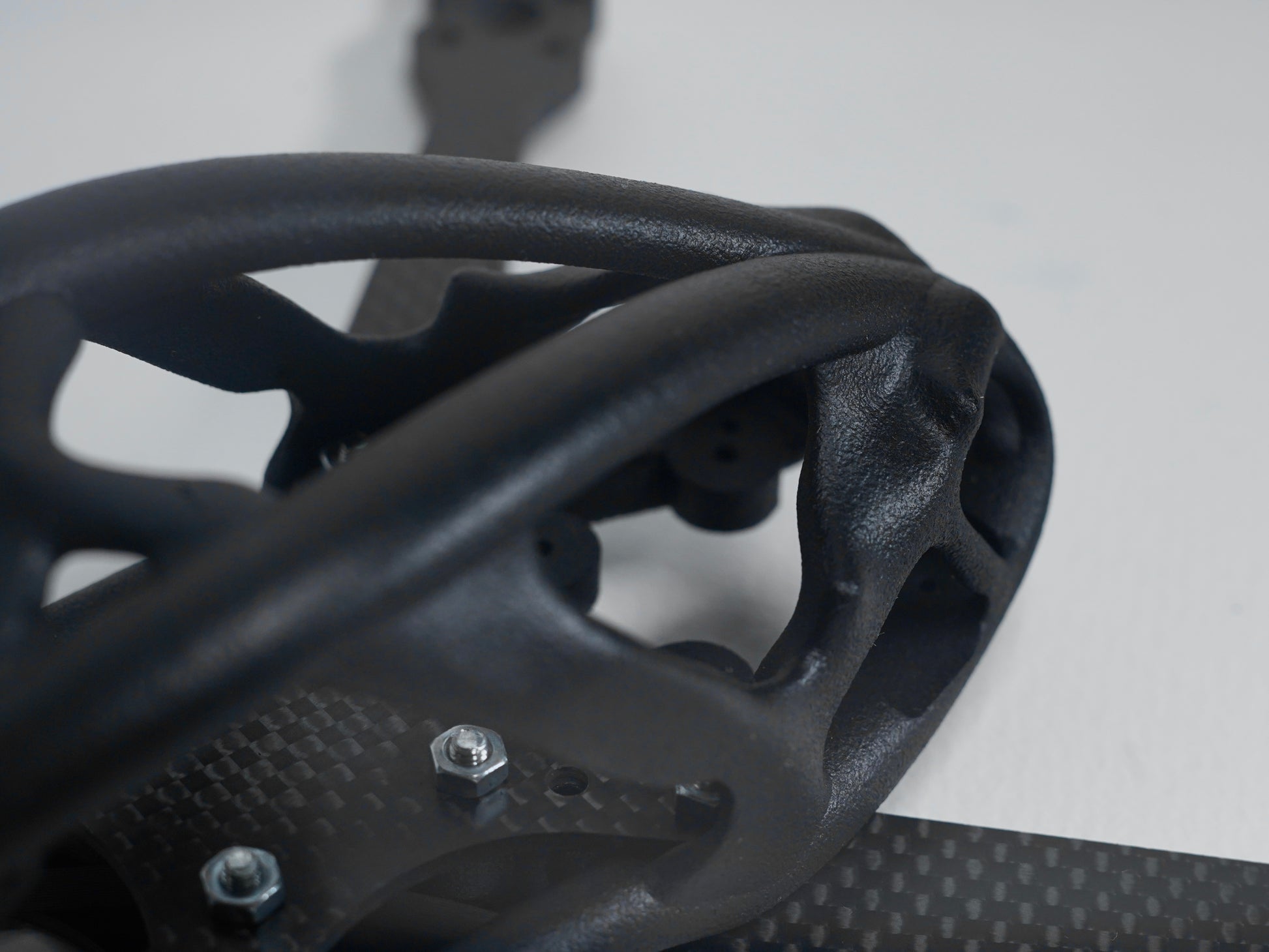

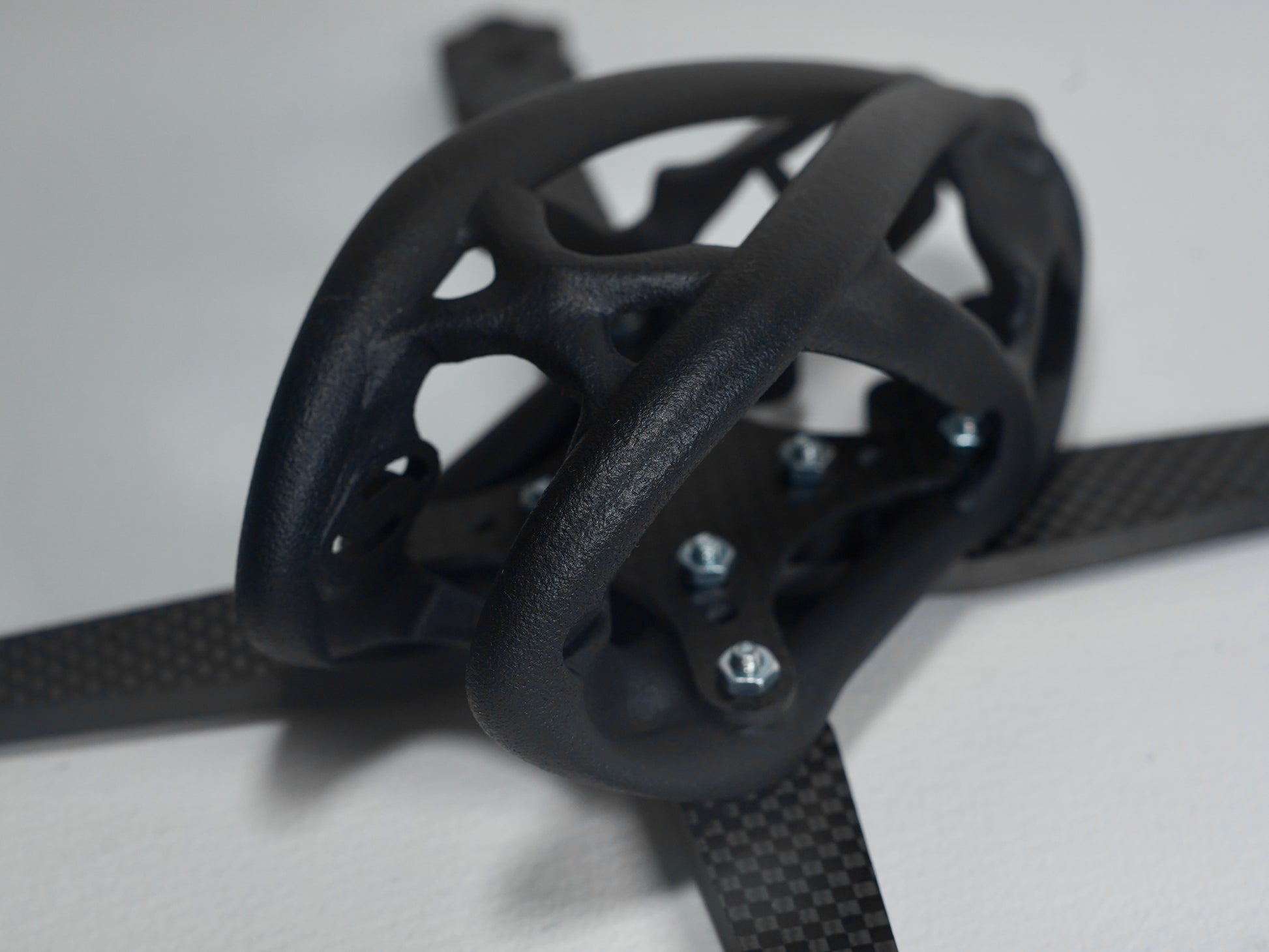

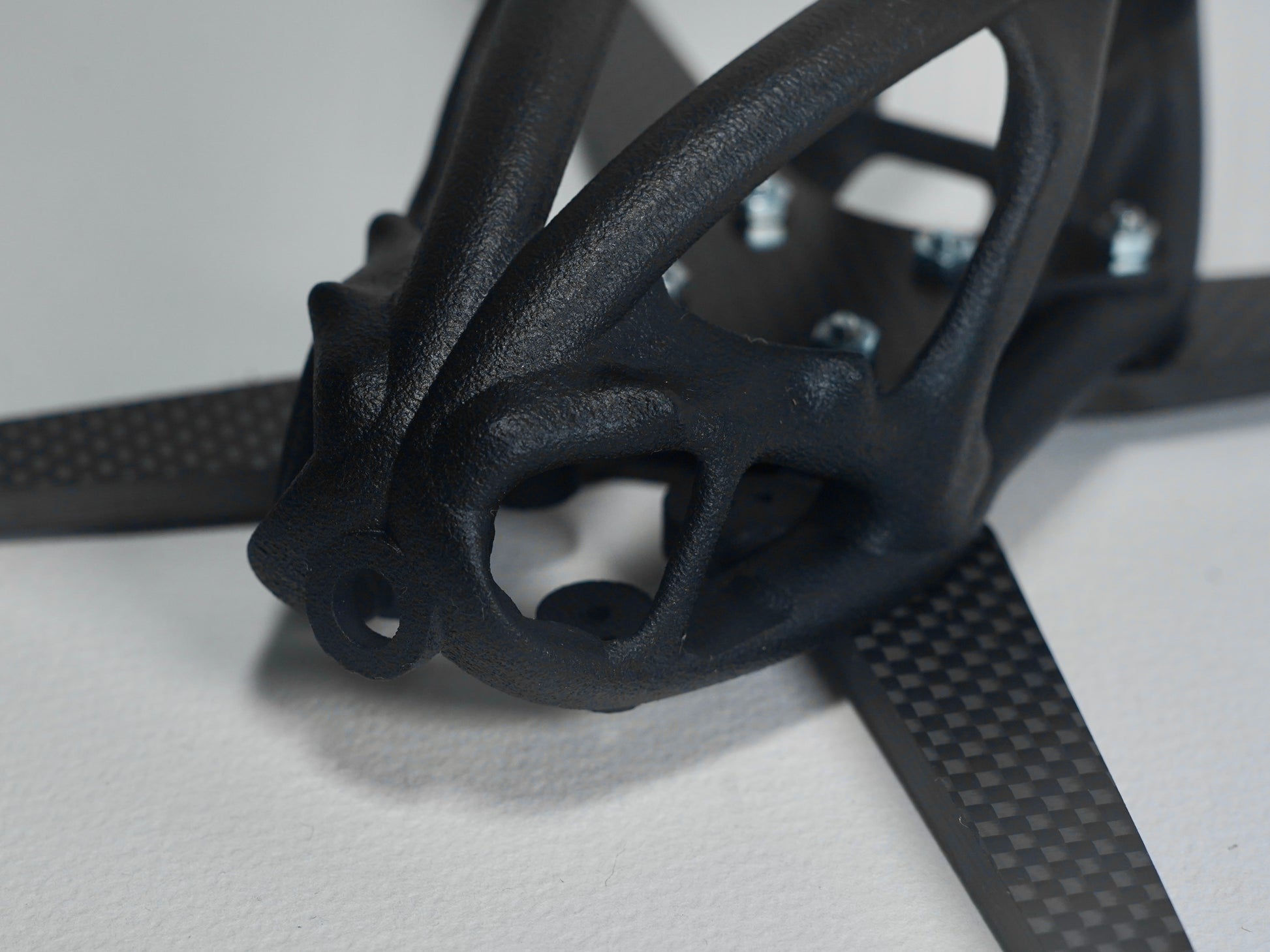

Superior Material Combination: The body is crafted from high-quality Nylon PA 11/12, leveraging advanced stiffness calculations and 3D printing technology to achieve the ideal structural integrity. This results in exceptional form stiffness, providing a solid and durable base for your drone.
Carbon Fiber Arms: The arms are made from carbon fiber, offering unparalleled rigidity and lightweight characteristics. This ensures maximum strength and minimal flex, enhancing the drone's stability and performance during high-speed maneuvers and demanding flight conditions.
Complete Protection: Features a comprehensive protective design for electrical components, safeguarding your drone's vital parts from damage during flight and in the event of hard landings.
Lightweight Design:Weighing around 106 grams, this frame strikes the perfect balance between sturdiness and lightness, contributing to superior flight dynamics and agility.
Propeller Compatibility: Supports 5-inch propellers, providing optimal thrust and efficiency for various flight conditions.
Motor Mounting: Compatible with motors mounted on a 16 x 16mm grid, allowing for flexibility and easy customization.
Flight Controller Mounting: Accommodates Flight Controllers with a mounting size of 30.5 x 30.5mm, ensuring compatibility with a wide range of FC units.

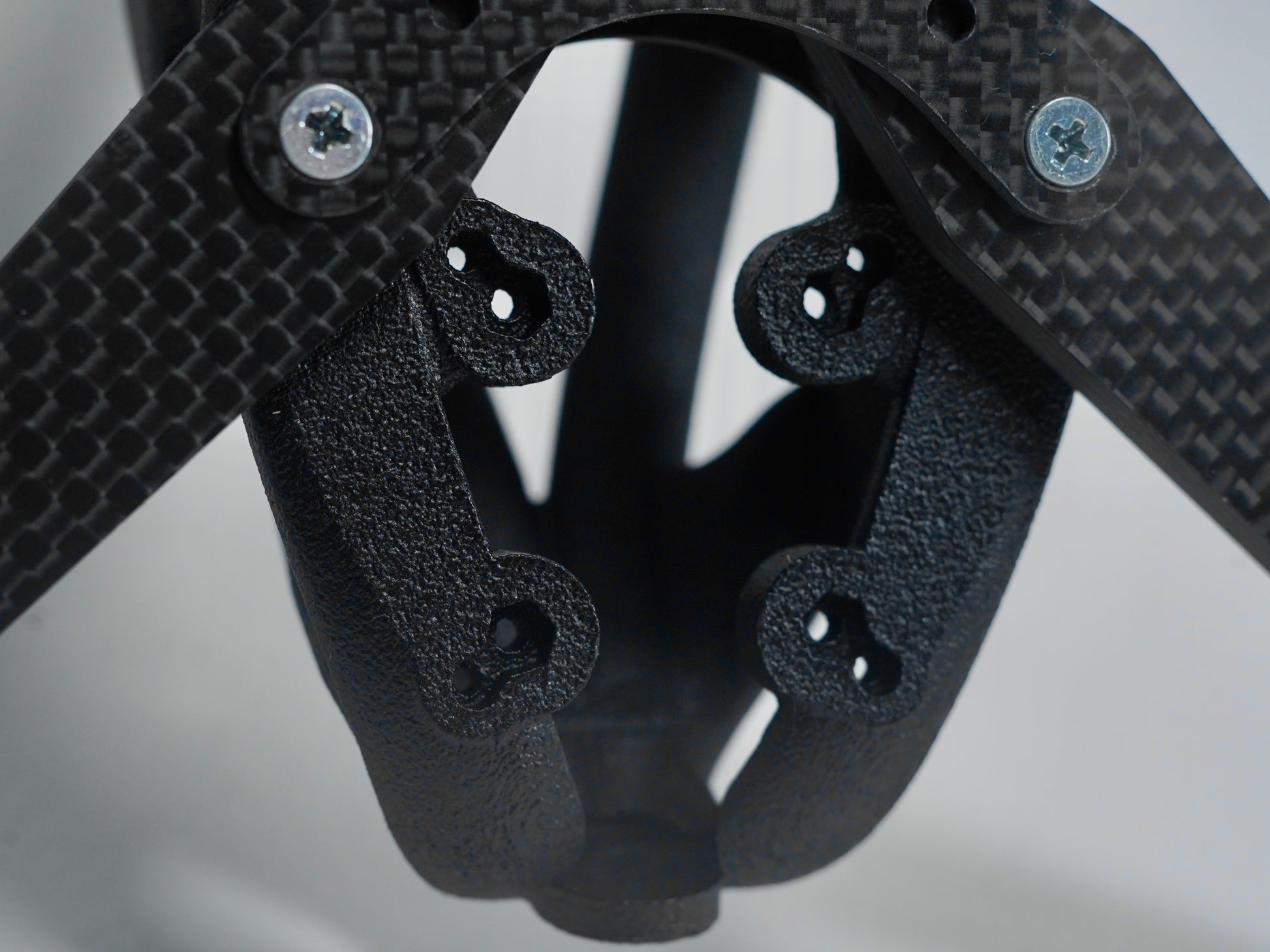

VTX Mounting: Designed to support VTX units with mounting options of 20 x 20mm and 25.5 x 25.5mm, specifically accommodating the DJI O3 Air Unit, providing secure and versatile mounting solutions.
Engineered with precision, this drone frame harnesses the ideal properties of both Nylon PA 11/12 and carbon fiber. The nylon body, enhanced through modern stiffness calculations and 3D printing technology, offers optimal form stiffness and durability. Meanwhile, the carbon fiber arms deliver exceptional rigidity and lightweight performance, ensuring your drone remains stable and responsive under all conditions. Elevate your flying experience with a frame that combines innovative materials and cutting-edge design for optimal performance.
The set includes:
A Nylon PA11/12 Frame weighting 48g

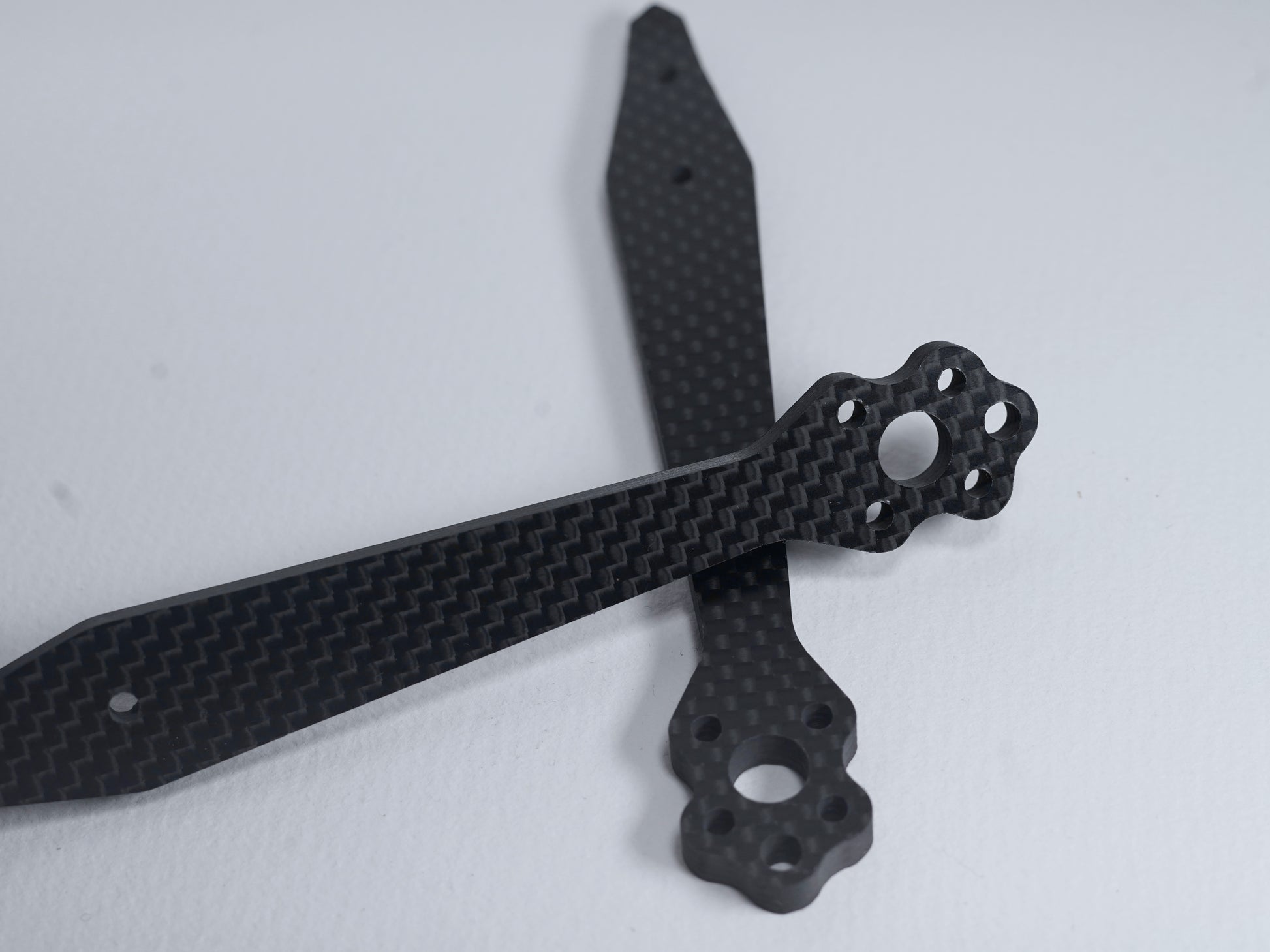

Four 5mm Carbon Fibre arms, each around 12g

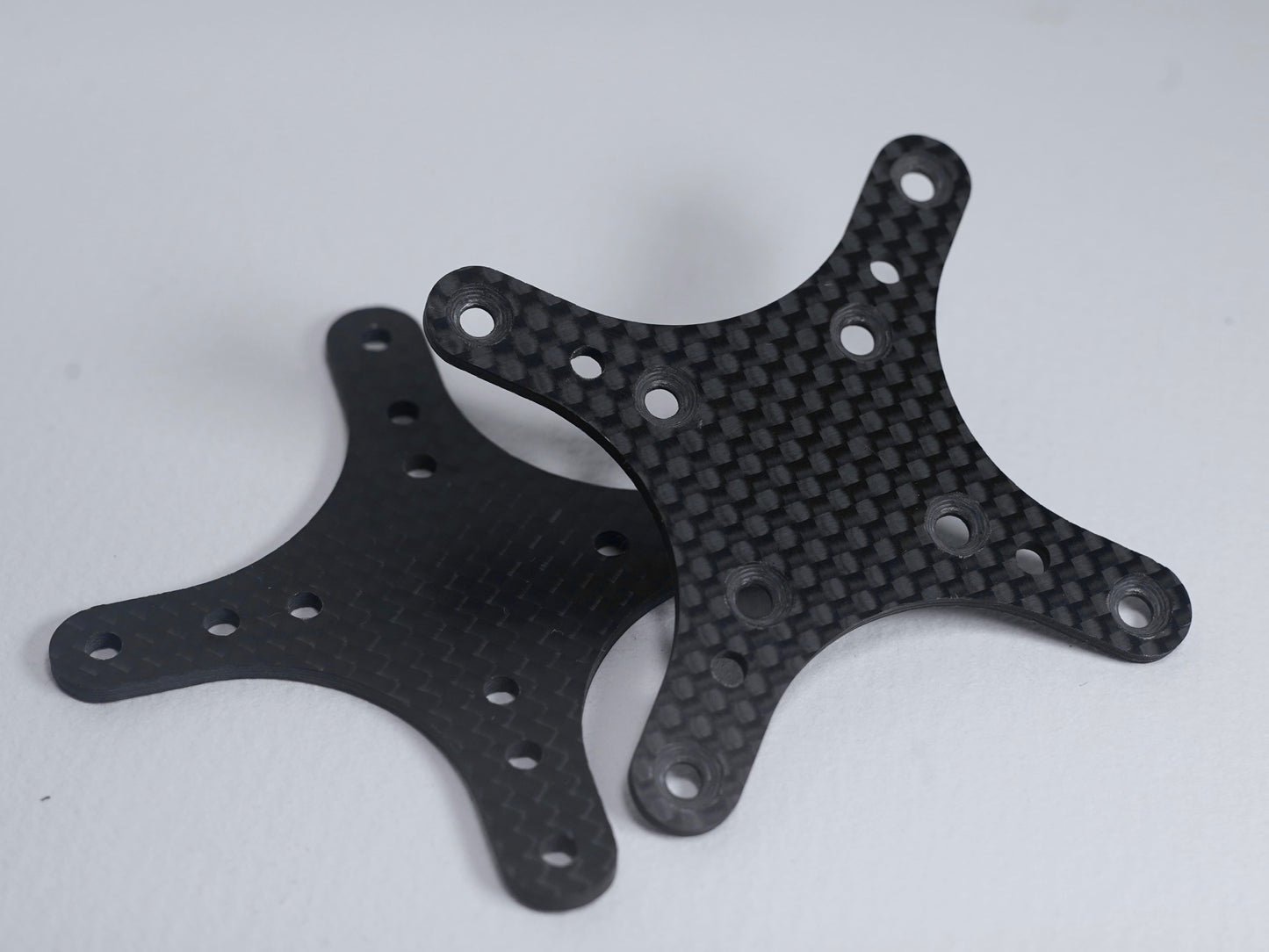

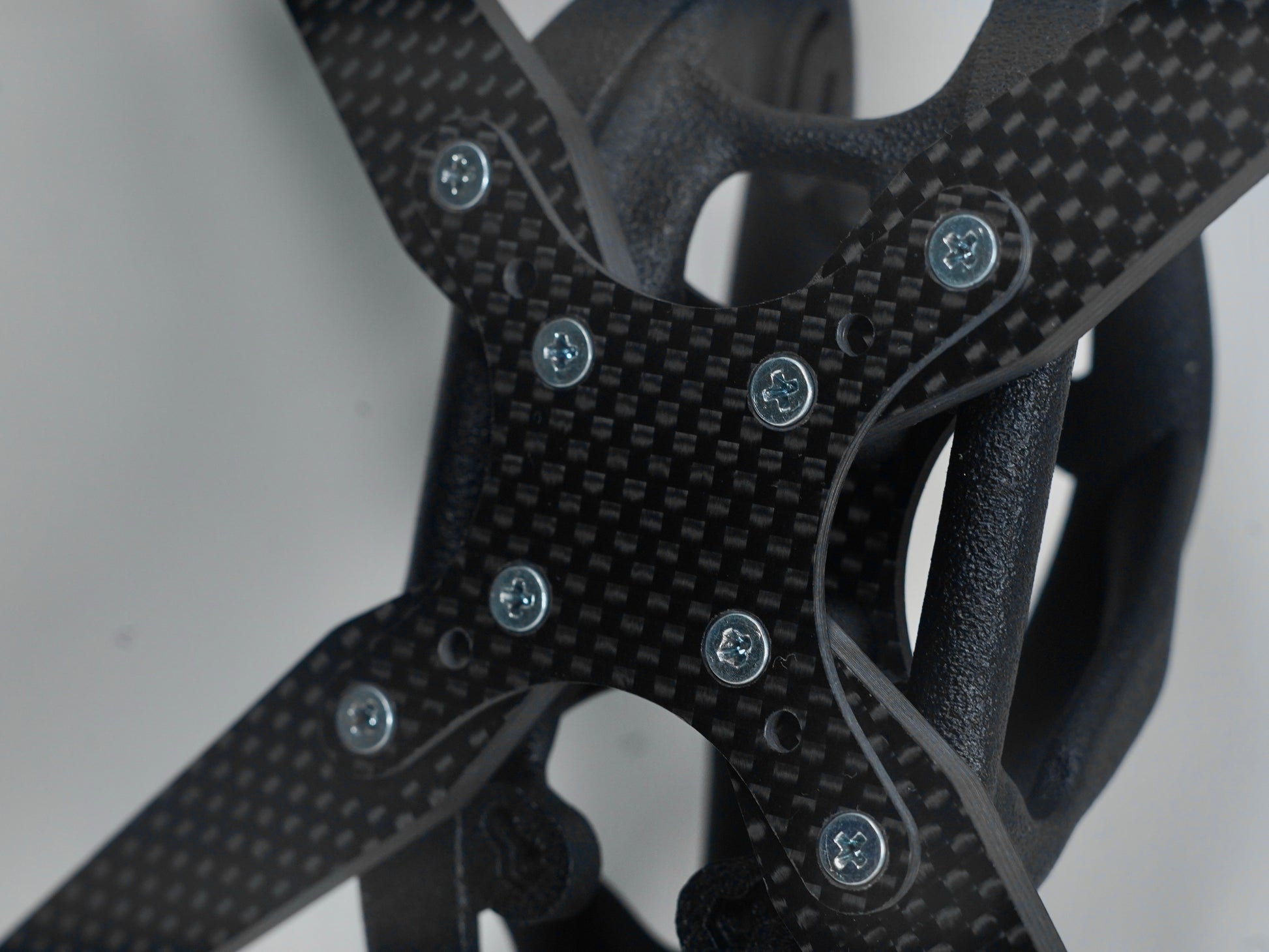

Two 2mm Carbon Fibre cross structures, with 5g per part

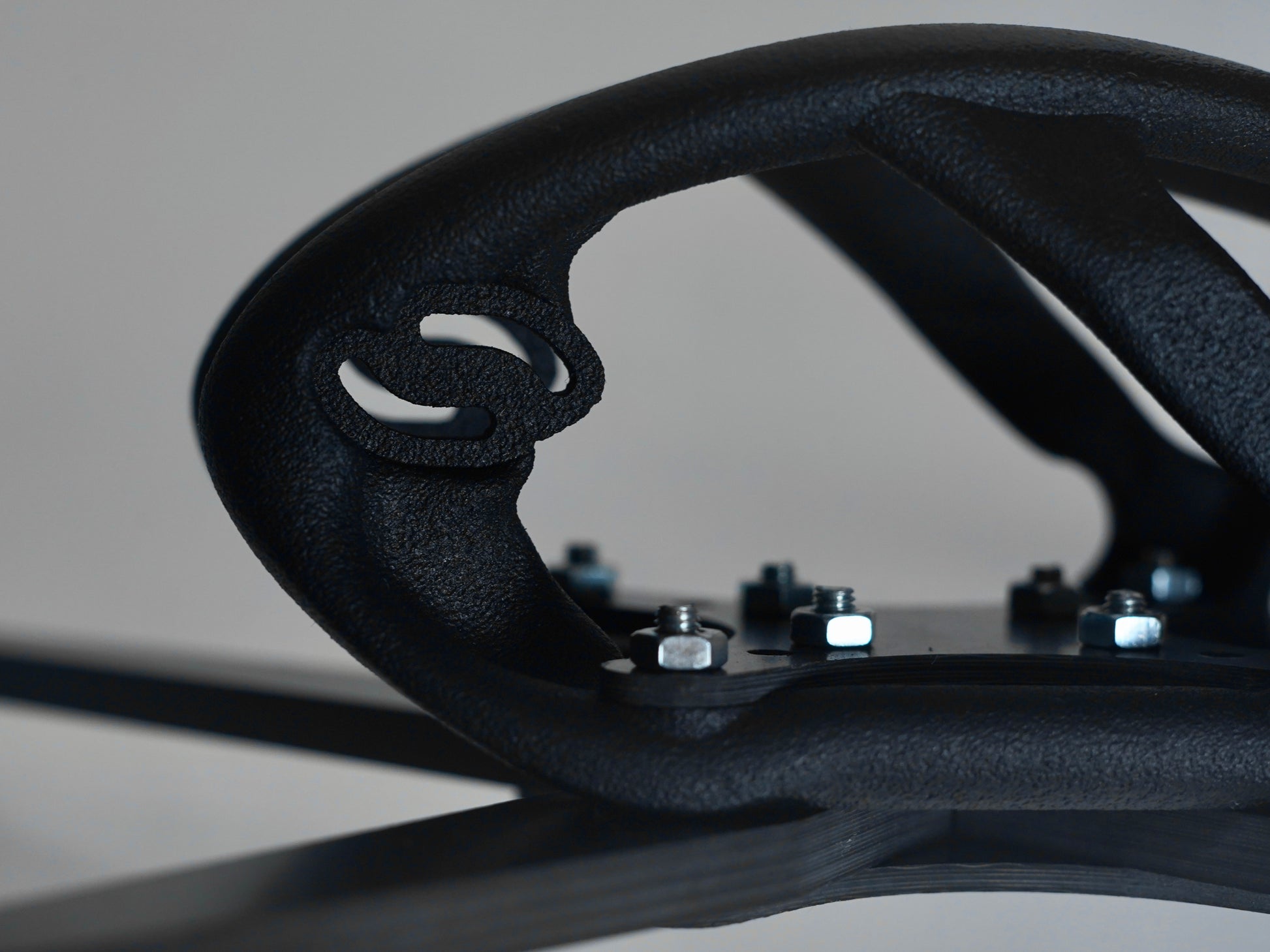

M3 Steel screws for the mounting of the arms and M1,6 Screws for DJI O3 Air Units
